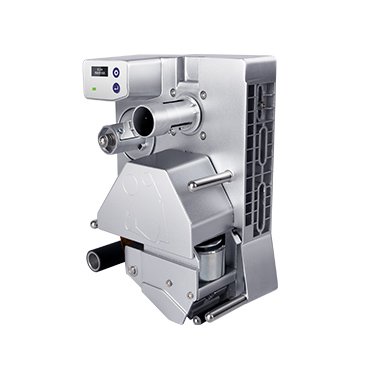

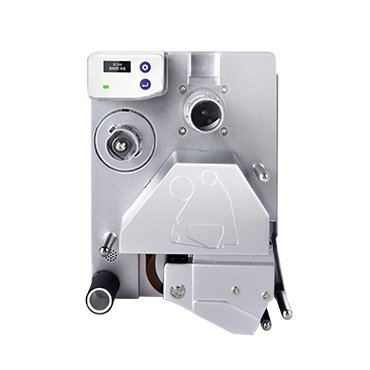

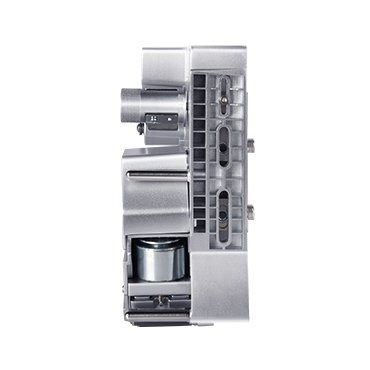

G24E – 24mm TTO Printer

Intelligent Date Coder

It is a coder that brings you simplicity and convenience. Designed for high-speed packaging environments, it ensures accurate batch coding, date printing and barcode printing with reliable performance.

Technical Specifications

Items	Specifications
Print Operation	Mobile Application (Android / IOS) phones
Print Method	Thermal transfer
Print Area	24mm × 15mm
No. of Lines	5 Lines (3mm each line height) – 6 Lines (2.5mm each line height)
Resolution	203dpi (8 dots/mm)
Print Speed	20mm/s – 200mm/s
Character Size	Vector font can be enlarged (BOLD)
Character Type	English characters, numbers, punctuation
Coding Direction	0° or 180°
Printing Time	100ms (minimum residence time of packaging film)
Applicable Equipment Capacity	200 packets/min (print fixed content with length of 15mm)
Coding Type	Bar code: 1D code, 2D code Production date, shelf life and sales period Automatic batch number and batch code Factory number Machine number Custom text
External Input	Sensor signal output: NPN / PNP (DC 12V-24V)
External Output	Reedless contact
Ribbon Length	600m
Ribbon Type	Wax / Resin
Type of Flexible Packaging Material	Various films and composite films such as PVC, PET, PE, NY, CPP, OPP, BOPP, BOPET, BOPA, PE, VMPET, VMCPP, etc.
Working Temperature & Humidity	5°C – 40°C, 10% – 90% RH
IP Class	IP40
Power Supply	Adapter input: AC 100-240V ±10%, 50-60Hz
I/O Interface	Print signal, fault relay, OV/COM, DC 24V
